pump flanges

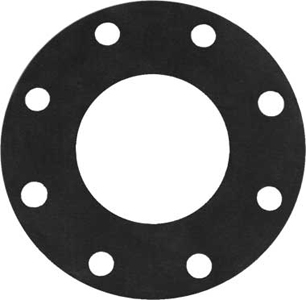

flange neoprene gasket

View Specifications
Enlarge Image

size part number weight (lbs.) list price
3" 288 FGN3 0.20 lbs call
4" 288 FGN4 0.30 lbs call
6" 288 FGN6 0.35 lbs call
8" 288 FGN8 0.35 lbs call
10" 289 FGN10 0.50 lbs call
12" 289 FGN12 0.65 lbs call
1/8th inch thickness. 1/4th inch thickness available / full faced.
Prices and discount structures subject to change without notice.

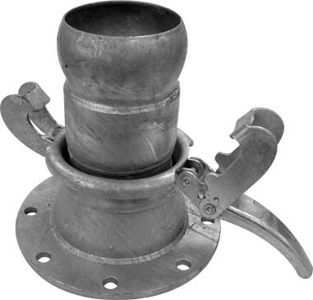

galvanized increasing flange - male / female

View Specifications
Enlarge Image

size part number weight (lbs.) list price
4" Flange x 6" Socket/Female 032 F4-6F 26.75 lbs call
6" Flange x 8" Socket/Female 032 F6-8F 21.00 lbs call
4" Flange x 6" Ball/Male 033 F4-6M 16.00 lbs call
6" Flange x 8" Ball/Male 033 F6-8M 51.75 lbs call
All flanges are designed to ASA 150 series hole specifications.
Prices and discount structures subject to change without notice.

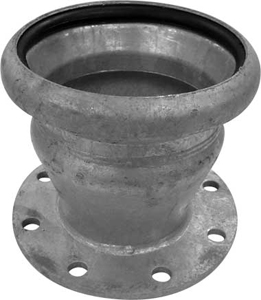

galvanized reducing flange - male / female

View Specifications
Enlarge Image

size part number weight (lbs.) list price
6" Flange x 4" Socket/Female 032 F6-4F 14.00 lbs call
8" Flange x 6" Socket/Female 032 F8-6F 22.00 lbs call
6" Flange x 4" Ball/Male 033 F6-4M 23.25 lbs call
8" Flange x 6" Ball/Male 033 F8-6M 43.75 lbs call
All flanges are designed to ASA 150 series hole specifications.
Prices and discount structures subject to change without notice.

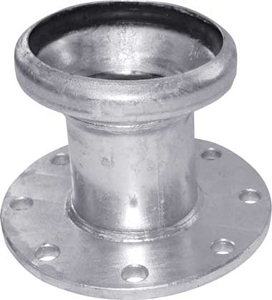

galvanized suction flange socket - female

View Specifications
Enlarge Image

size part number weight (lbs.) list price
3" 030 F3F 8.90 lbs call
4" 030 F4F 12.05 lbs call
6" 030 F6F 16.00 lbs call
8" 030 F8F 24.30 lbs call
All flanges are designed to ASA 150 series hole specifications.
Prices and discount structures subject to change without notice.

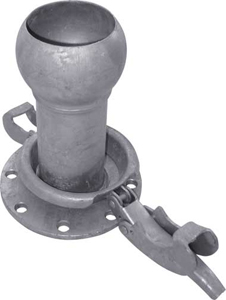

glavanized discharge flange ball / male

View Specifications
Enlarge Image

size part number weight (lbs.) list price
3" 010 F3M 11.60 lbs call
4" 010 F4M 17.15 lbs call
6" 010 F6M 27.90 lbs call
8" 010 F8M 39.85 lbs call
All flanges are designed to ASA 150 series hole specifications.
Prices and discount structures subject to change without notice.
